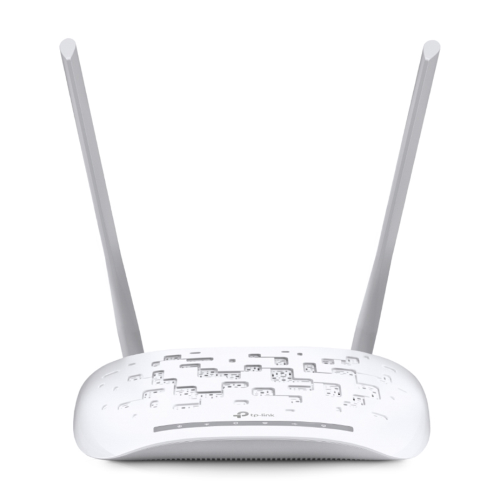

Router Tp-Link Adsl Td-W9970 Wireless 300 Mbps Adsl/Vdsl2 Fibra No-Voip

Description

Connettivita' versatile - Dotato di porta DSL e LAN/WAN, TD-W9970 e' compatibile con standard di connessione VDSL2/ADSL2+/ADSL2/ADSL.
Connessioni FR (VDSL) - Supporta connessioni FR fino a 100Mbps.
Wi-Fi N300 - Velocita' wireless fino a 300Mbps in 2.4GHz.
Ampia copertura - Le potenti antenne esterne offrono un'ampia copertura del segnale wireless.
Configurazione e gestione intuitiva - La potente app Tether e la pratica interfaccia web permettono di configurare e gestire la rete in pochi semplici step.
Agile Config - soluzione per Service Provider.

_______

WAN connection
Ethernet WAN
DSL WAN
SIM card slot
3G/4G USB modem compatibility
WAN connection type	RJ-45
Wireless LAN features
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Network
Ethernet LAN
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Port forwarding
Dynamic DNS (DDNS)
Number of guest networks (2.4 GHz)	1
Wireless Distribution System (WDS) bridge
USB sharing
Built-in FTP server
Media server
VPN tunnels quantity	10
VPN Passthrough
VPN support	PPTP, L2TP, IPSec Pass-through
DSL features
ADSL
ADSL2
ADSL2+
VDSL2
Ports & interfaces
Ethernet LAN (RJ-45) ports	4
USB port
USB 2.0 ports quantity	1
RJ-11 ports quantity	1
Management features
Web-based management
Wi-Fi Multimedia (WMM)/(WME)
Quality of Service (QoS) support
Reset button
WPS push button
Security
Security algorithms	128-bit AES, 128-bit WEP, 192-bit AES, 256-bit AES, 3DES, 64-bit WEP, DES, MD5, SHA-1, WPA, WPA-PSK, WPA2, WPA2-PSK
Firewall
Guest access
Stateful Packet Inspection (SPI)
Parental control
Filtering
MAC address filtering
IP address filtering
URL filtering
DMZ support
Network address translation (NAT)
Protocols
DHCP client
Universal Plug and Play (UPnP)
Design
Product type	Tabletop router
Product colour	White
Wall mountable
LED indicators
On/off switch

Packaging content
Cables included	LAN (RJ-45), Phone (RJ-11)
AC adapter included
Quick start guide
Certificates
Certification	CE, FCC, RoHS
Logistics data
Harmonized System (HS) code	85176990
Packaging data
Package width	260 mm
Package depth	232 mm
Package height	70 mm
Package weight	550 g
Weight & dimensions
Height	36 mm
Depth	130 mm
Width	195 mm
System requirements
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows XP
Linux operating systems supported
Mac operating systems supported	macOS
Operational conditions
Storage relative humidity (H-H)	5 - 90%
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Power
Power source type	DC
Output voltage	12 V
Output current	1 A
Features
Firmware upgradeable
Antenna
Antenna design	External
Antenna gain level (max)	5 dBi
Antennas quantity	2
Other features
xDSL connection
Frequency range	2.4 - 2.4835 GHz
USB version	2.0
USB ports quantity	1
WLAN data transfer rates supported	300 Mbit/s
