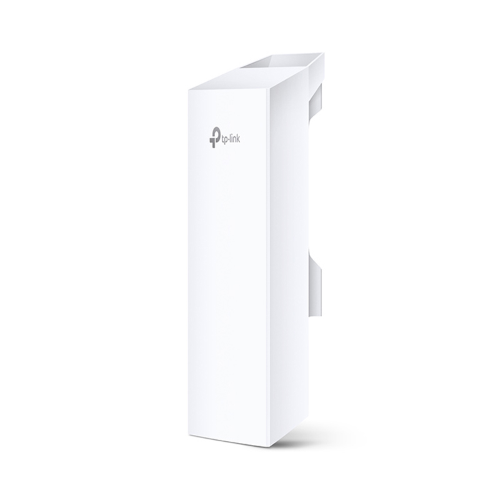

Access Point Tp-Link Cpe510 5Ghz 300Mbps 13Dbi Outdoor
Use Mouse Wheel to Zoom In/Out
| Price: |
|
|---|---|
| Item code: | TPLCPE510 |
| Brand: | 6935364070922 |
| Availability: | Not available |
| Quantity: |
Services
PrintTell me when price will be reducedTell me when the product will become availableShareAsk for informationUsers feedback
Description
Antenna integrata MIMO 2x2 a doppia polarizzazione da 13dBiPotenza regolabile da 0 a 17dBm
Ottimizzazione per link fino a 3km
Tecnologia TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) per ottimizzare Capacita' a' e latenza, ideale per applicazioni PTMP
Gestione centralizzata Pharos Control
Modalita' operative AP / Client / AP Router / AP Client Router (WISP)
Injector PoE Passivo (incluso nella confezione) con Capacita' a' fino a 60m e funzionalita' di RESET remoto
_______
| Features | |
|---|---|
| 2.4 GHz |  |
| 6 GHz | |
| 5 GHz |  |
| Maximum data transfer rate | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 300 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Throughput data rate | 300 Mbit/s |
| Frequency band | 5.15 - 5.85 GHz |
| Bandwidth | 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11n |
| Cabling technology | 10/100Base-T(X) |
| Automatic channel scanning | |
| Automatic channel selection | |
| VLAN support | |
| Virtual LAN features | Tagged VLAN |
| Wireless isolation | |
| Maximum outdoor range | 15000 m |
| Receiver sensitivity | 802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm 802.11n: MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm, MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm |
| Security | |
| Security algorithms | AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| MAC address filtering | |
| IP address filtering | |
| Service Set Identifier (SSID) features | SSID broadcast, SSID broadcast on/off |
| IGMP snooping | |
| Auto Wireless Distribution System (WDS) | |
| Protocols | |
| Universal Plug and Play (UPnP) | |
| Management protocols | TDMA |
| Management features | |
| Web-based management | |
| Syslog | |
| Management platform | Pharos Control |
| Firmware upgradeable | |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | |
| Power | |
| Power over Ethernet (PoE) | |
| DC voltage range | 16 - 27 V |
| Power consumption (typical) | 13 W |
| Design | |
| Placement | Pole, Wall |
| Product colour | White |
| Housing material | Plastic |
| International Protection (IP) code | IP5X |
| Reset button | |
| LED indicators | |
| Antenna | |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antennas quantity | 1 |
| Antenna gain level (max) | 13 dBi |
| Performance | |
| Built-in processor | |
| Processor model | Qualcomm Atheros |
| Processor frequency | 560 MHz |
| Processor architecture | MIPS 74Kc |
| Flash memory | 8 MB |
| Internal memory | 64 MB |
| Compatible operating systems | Microsoft Windows 98SE, NT, 2000, XP, Vista? or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. |
| Certificates | |
| Certification | - FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -30 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| PoE adapter included | |
| Cables included | AC |
| Mounting kit | |
| Packaging data | |
| Package width | 132 mm |
| Package depth | 270 mm |
| Package height | 106 mm |
| Package weight | 720 g |
| Weight & dimensions | |
| Width | 224.4 mm |
| Depth | 79 mm |
| Height | 60.3 mm |
